TECHNOLOGY PARAMETER
|
ITEM |
PARAMETER |
UNIT |
DATA |
|

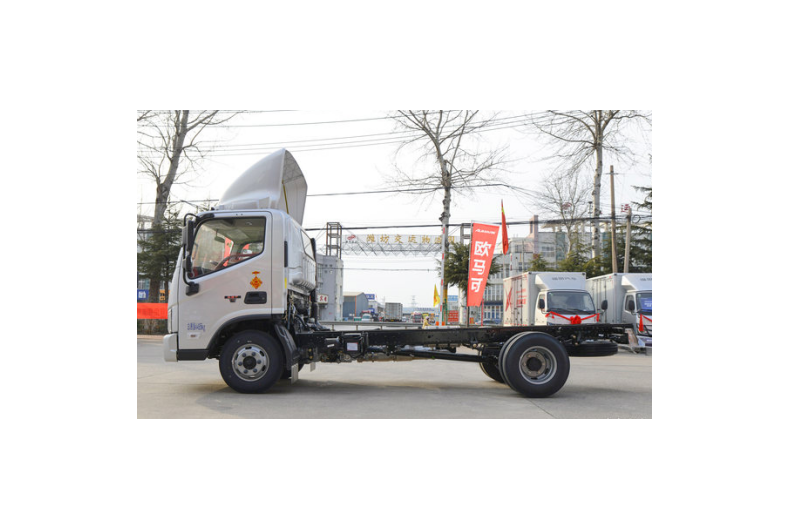

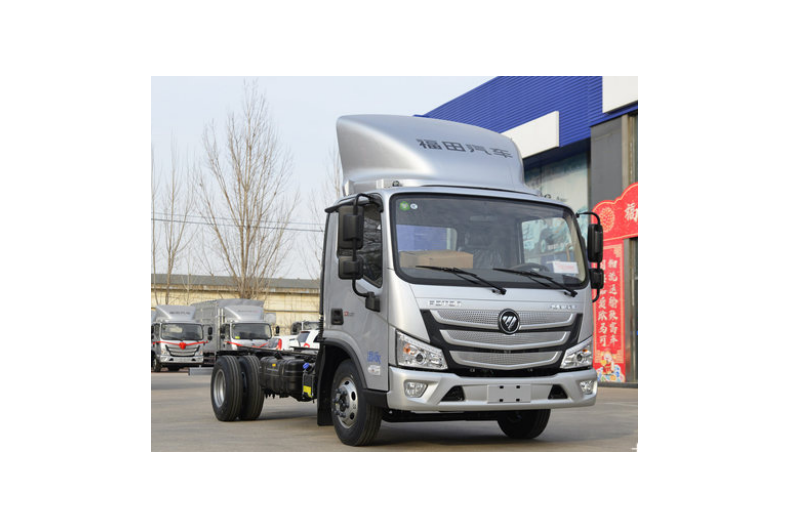

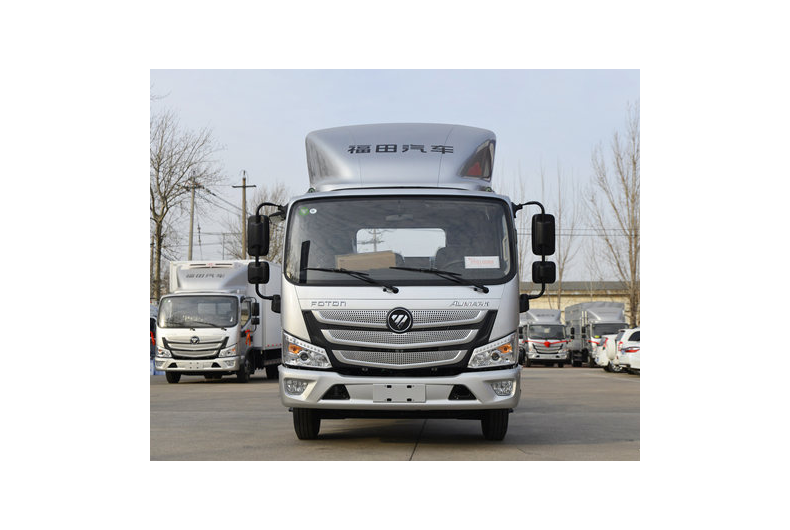

Chassis |
Vehicle Model |
|
SA1048V9JEA |
|
Overall Dimensions |
mm |
5960*2060*2260 |
|
|
GVW |
kg |
5380approximate |
|
|
Curb Weight |
2200approximate |
||
|
Rated Load |
3000approximate |
||
|
Front/Rear Hanging |
mm |
||
|
Approach/Departure Angle |
° |
19/16 |
|
|
Leaf Spring |
pcs |
3/5+2 |
|
|
Drive Wheel |
|
4*2 |
|
|
Manufacturer |
|
Foton |
|
|
Wheel Base |
mm |
3360 |
|
|
Tire Specification |
inch |
7.00R16 |
|
|
No. of Tires |
pcs |
6+1 spare |
|
|
Engine |
Engine Type |
|
F2.8NS6B156(Euro VI) |
|
Manufacturer |
|
Beijing Foton Cummins Engine Co., Ltd |
|
|
Engine Horsepower |
hp |
156 |
|
|
Displacement |
ml |
2780 |
|
|
Emission Standard |
|
Euro VI |
|
|
Gearbox |
No. of Gears |
|
Manual 6-speed with overdrive |
|

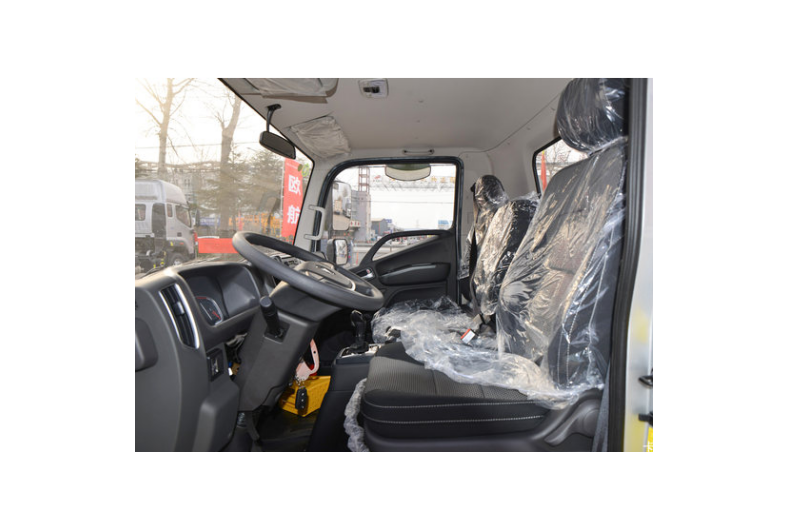

Cab |
passengers |
|
2 |
|
steering wheel |
|
LHD |
|
|
ROW |
|
Single row |
|
|
Other |
Air conditioning, steering wheel assist system,Air brake, electric glass window, ABS. |
||
