ITEM |
PARAMETER |
UNIT |
DATA |
|
|
Overall Dimensions |
mm |
12500X2500X3850 |
|
|
Curb Weight |
kg |
19300approximate |
|
|
Rated Load |
|
18000pproximate |
|
|
Axle load |
kg |
6500/6500/18000(dual axis) |
|
|
Front/Rear Hanging |
mm |
1500/2700 |
|
|
Approach/Departure Angle |
° |
21/10 |
|
|
Leaf Spring |
pcs |
8/8/10 |
|
|
Drive Wheel |
|
8*4 |
|
|
Chassis Model |
|
DFH1310A1 |
|
|
Manufacturer |
|
Dongfeng Commercial Vehicle Co., Ltd |
|
|
Wheel Base |
mm |
2150+4300+1350 |
|
|
Tire Specification |
inch |
11.00R20 |
|
|
No. of Tires |
pcs |
12+1 spare |
|
Engine |
Engine Type |
|
ISL9.5-340E51A |
|
|
Manufacturer |
|
Dongfeng Cummins Engine Co., Ltd |
|
|
Engine Horsepower |
hp |
340 |
|
|
Displacement |
ml |
8900 |
|
|
Emission Standard |
|
Euro V |
|
Gearbox |
No. of Gears |
|
Manual 9-speed with overdrive |
|
Cab |
passengers |
|
2 |
|
|
steering wheel |
|
LHD |
|
|
ROW |
|
Single row and s sleeper |
|
Equipment |
Box size:8300X2400X550(mm) |
||
|
|

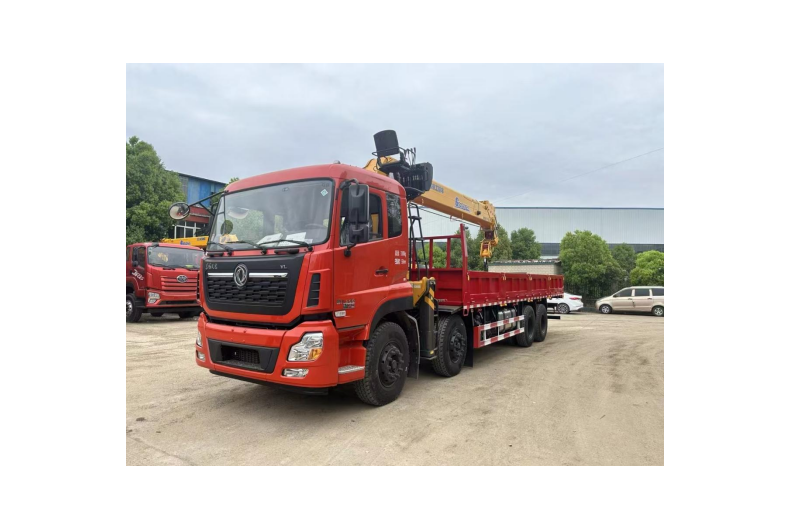

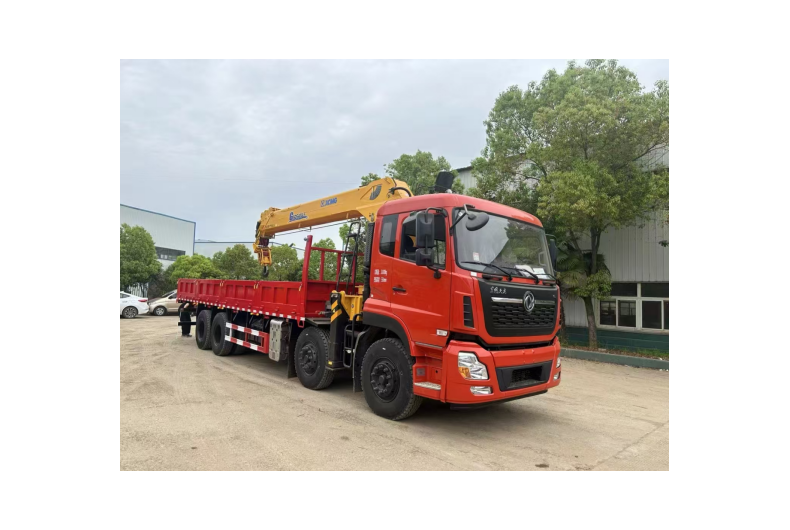

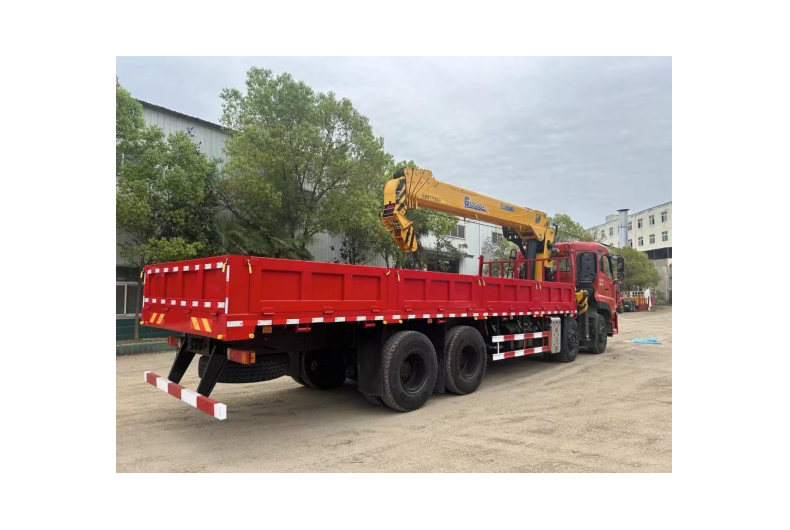

The crane is a XCMG 16 ton ,Four section straight arm crane Working radius :19.3 meters. Working height:20.7m. |
||
