ITEM |
PARAMETER |
UNIT |
DATA |
|
Whole Vehicle |
Vehicle Model |
|
SA5314JSQ5SZ |
|
Overall Dimensions |
mm |
12500*3200*4200 |
|
|
GVW |
kg |
31000 approximate |
|
|
Curb Weight |
23290 approximate |
||
|
Rated Load |
7510 approximate |
||
|
Front/Rear Hanging |
mm |
1410/2690 |
|
|
Approach/Departure Angle |
° |
19/10 |
|
|
Leaf Spring |
pcs |
10/10/10 |
|
|
Drive Wheel |
|
8*4 |
|
|
Chassis Model |
|
SE1310GJ |
|
|
Manufacturer |
|
DONGFENG (Shenzhen) Automobile Co., Ltd. |
|
|
Wheel Base |
mm |
2700+3750+1350 |
|
|
Tire Specification |
inch |
11.00R20 18PR |
|
|
No. of Tires |
pcs |
12+1 spare |
|
|
Engine |
Engine Type |
|
ISLE340 (EuroV ) |
|
Manufacturer |
|
Dongfeng Cummins Engine Co.,Ltd. |
|
|
Engine Horsepower |
hp |
340 |
|
|
Displacement |
ml |
8900 |
|
|
Emission Standard |
|
Euro V |
|
|
Gearbox |
No. of Gears |
|
Manual 12-speed with overdrive |
|
Cab |
passengers |
|
2 |
|
steering wheel |
|
LHD |
|
|
ROW |
|
One and a half rows |
|
|
Equipment |
Carriage size:7900 *2450 (mm) |
||
|

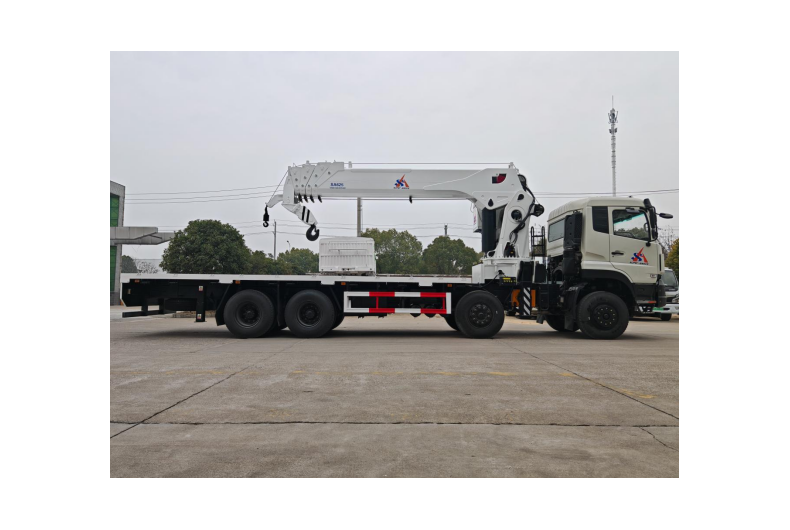

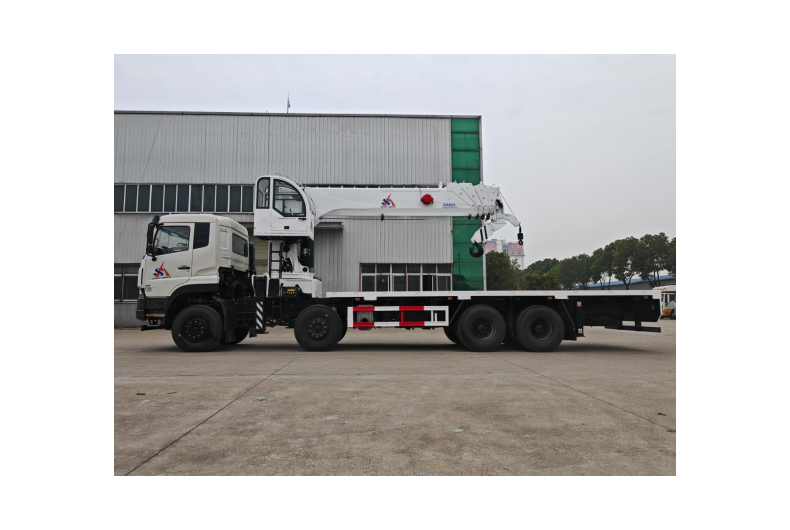

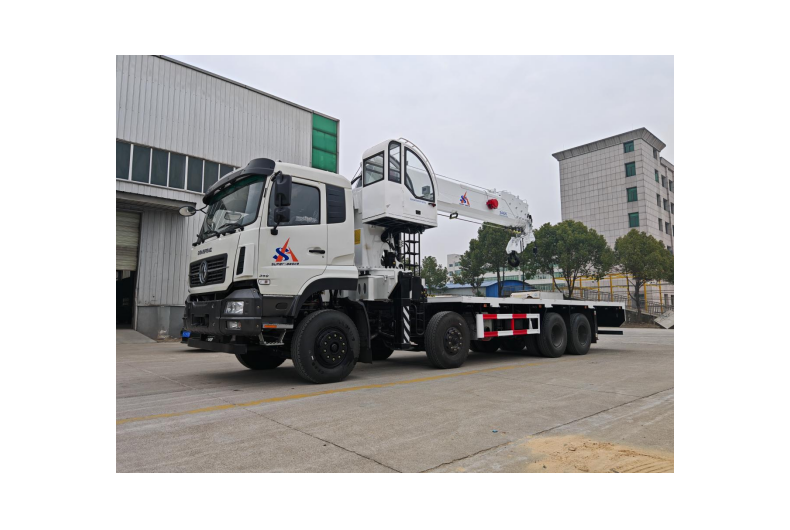

The crane is a 25 ton 5-section straight arm crane, working radius :18.5meters. Install the control panel cab above the right support leg. Install safe load indicator |
|||
|
Crane model |
Lifting height |
Working radius |
Max lifting mass |
Installation Space |
Remarks |
|
SA625 |
20m |
18.5 |
25000kh |
2400mm |
360 ° hydraulic and rotary, with supporting legs |
