ITEM

PARAMETER

UNIT

DATA

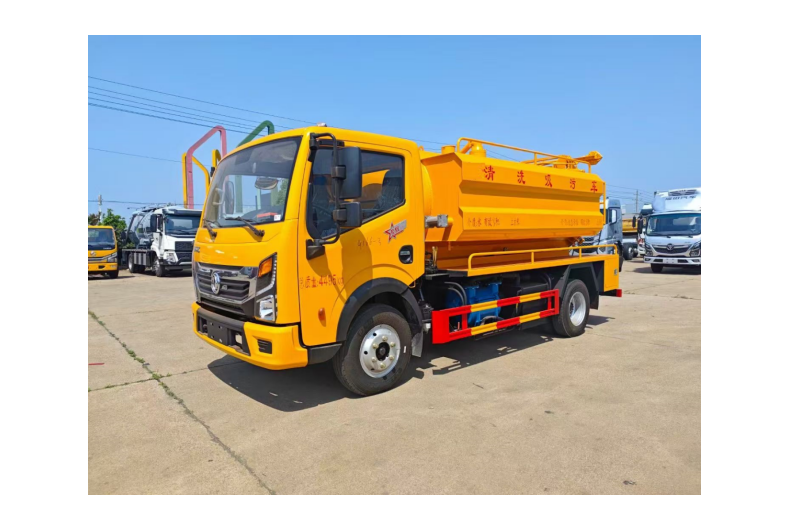

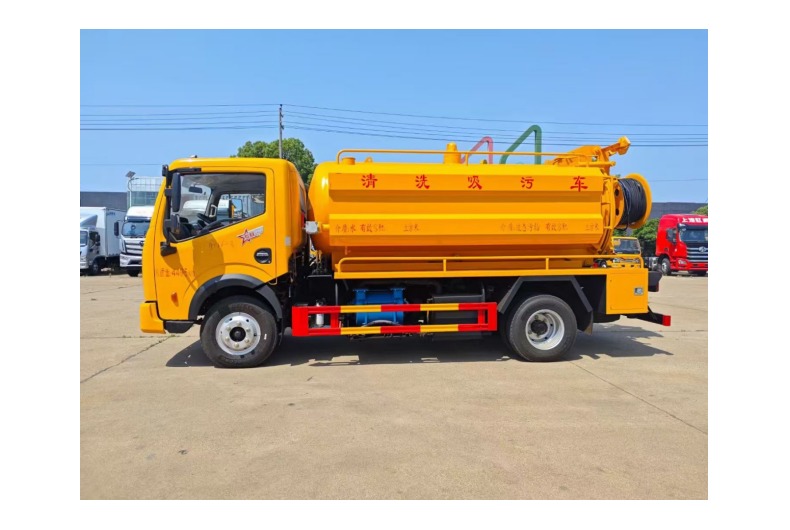

Whole Vehicle

Vehicle Model

SA5073GQW6

Overall Dimensions

mm

5690×2065×2312

Tank capacity

㎥

Sewage tank：4

Clear water tank：1

Curb Weight

Kg

2870approximate

 Load Weight

5000approximate

Front/Rear Hanging

mm

1055/1332

Approach/Departure Angle

 °

27/12

Leaf Spring

pcs

6/6+5

Drive Wheel

4*2

Chassis Model

EQ1075SJ3CDF

Manufacturer

Dongfeng Automobile Co., Ltd

Wheel Base

mm

3308

Tire Specification

inch

7.00R16

No. of Tires

pcs

6+1 spare

Engine

Engine Type

YCY24155-61A (Euro VI)

Manufacturer

  Guangxi Yuchai Machinery Co., Ltd

Engine Horsepower

hp

155

Displacement

ml

2360

Emission Standard

Euro VI

Gearbox

No. of Gears

Manual 6-speed with overdrive

Cab

passengers

2

steering wheel

LHD

ROW

Single row

Equipment

Tank volume: 5000L, clean water tank:1000L;sewage tank:4000L;Thickness: 5mm.

High pressure pump: pressure of 24bar; Flow rate 170L/min.

Suction pump: SK-9 water ring vacuum suction pump, flow rate: 540m ³/h, vertical suction depth up to 10 meters, horizontal suction distance not less than 50 meters.

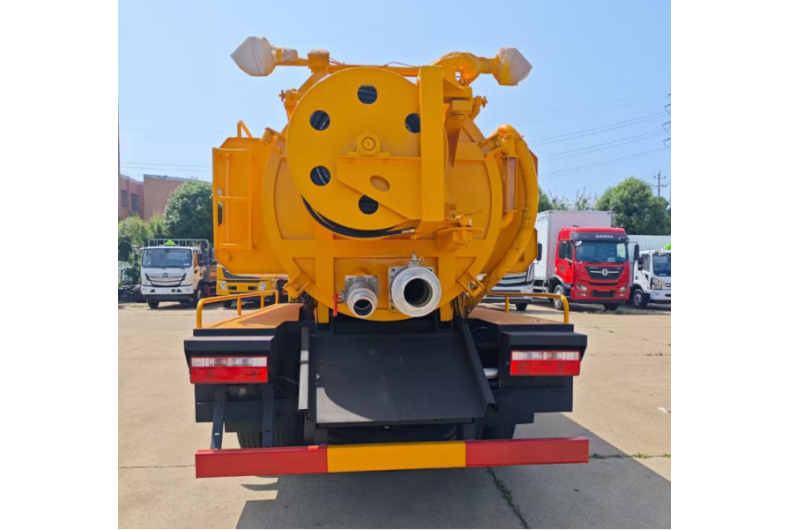

Roll: can wrap 80-100 meters of high-pressure pipes, hydraulic control, can rotate 160 degrees

High pressure hose: A domestically produced high-quality DN19 high-pressure hose specifically designed for sewer dredging, which is resistant to high pressure, lightweight, has low friction resistance, and strong scratch resistance. Standard configuration pipe length: 60m

Suction pipe: PVC102mm vacuum suction pipe, length 7 m

Nozzle: Standard includes 1 diamond shaped nozzle, 2 mushroom nozzles, and 1 cleaning spray gun.
