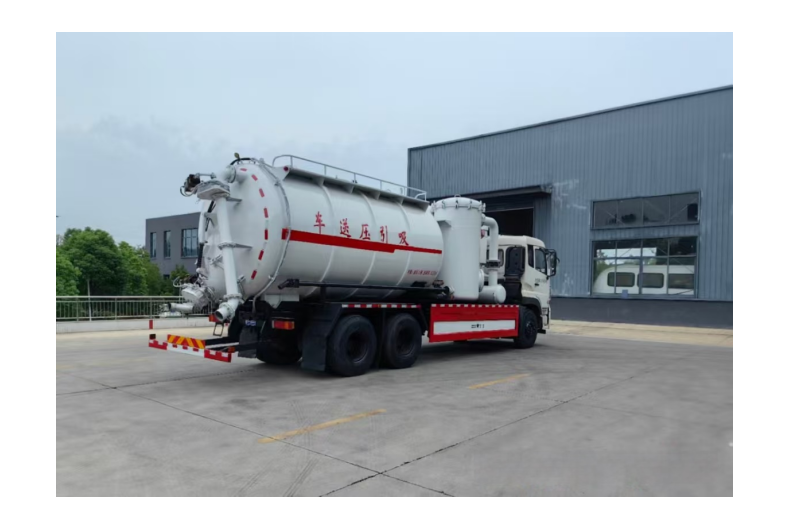

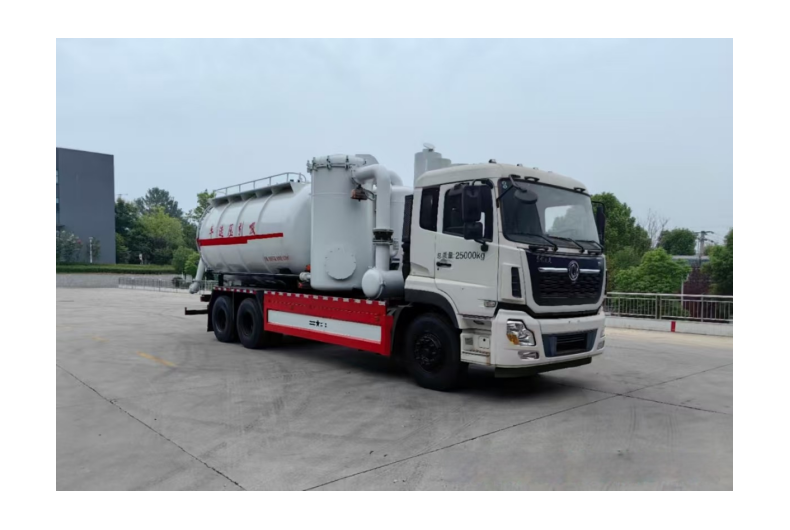

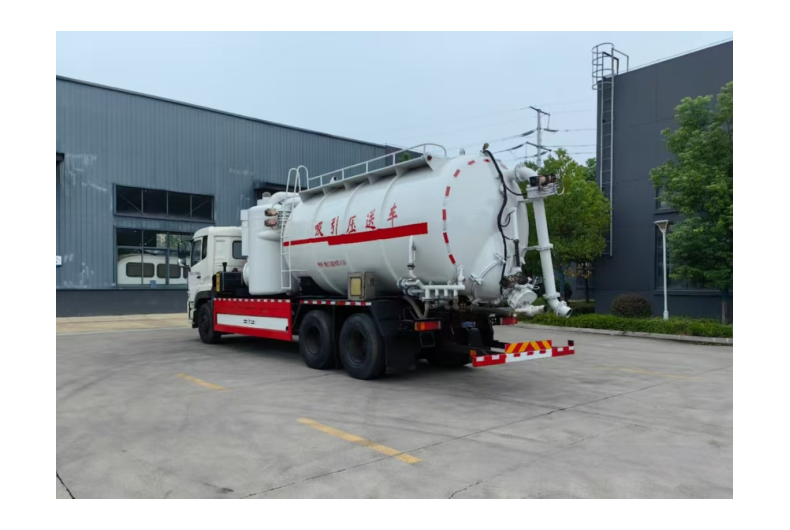

TECHNOLOGY PARAMETER
|
ITEM |
PARAMETER |
UNIT |
DATA |
|
Whole Vehicle |
Vehicle Model |
|
CLW5250GXY5 |
|
Overall Dimensions |
mm |
10970×2550×3850 |
|
|
Curb Weight |
kg |
17780 approximate |
|
|
Rated Load |
24000-35000approximate |
||
|
Front/Rear Hanging |
mm |
1480/2770 |
|
|
Approach/Departure Angle |
° |
20/9 |
|
|
Leaf Spring |
pcs |
9/10 |
|
|
Drive Wheel |
|
6*4 |
|
|
Chassis Model |
|
DFL1250A |
|
|
Manufacturer |
|
Dongfeng Commercial Vehicle Co., Ltd |
|
|
Wheel Base |
mm |
5600+1350 |
|
|
Tire Specification |
inch |
315/80R22.5 |
|
|
No. of Tires |
pcs |
10+1 spare |
|
|
Engine |
Engine Type |
|
ISL380 50 (Euro V ) |
|
Manufacturer |
|
Dongfeng Cummins Engine Co., Ltd |
|
|
Engine Horsepower |
hp |
380 |
|
|
Displacement |
ml |
8900 |
|
|
Emission Standard |
|
Euro V |
|
|
Gearbox |
No. of Gears |
|
Manual 12-speed with overdrive |
|
Cab |
passengers |
|
2 |
|
steering wheel |
|
LHD |
|
|
ROW |
|
Single row and a sleeper |
|
|
Other |
Air conditioning, steering wheel assist system,Air brake, electric glass window, ABS. |
||
|
Tank Configuration Parameters |
||
|
Total Tank Volume (m³) |
16 |
|
|
Head Type |
Spin-formed |
|
|
Max. Tank Lifting Angle |
45° |
|
|
Max. Internal Working Negative Pressure (MPa) |
−0.08 |
|
|
Suction System Configuration Parameters |
||
|
Vacuum Pump |
Roots-type ASF-200VT |
|
|
Drive Method |
Independent On-board Power Take-off (PTO) |
|
|
Suction Method |
Negative Pressure Suction |
|
|
Max. Working Negative Pressure (MPa) |
−0.05 |
Optional imported pump: −0.09 |
|
Suction Speed (t/h) |
30–80 |
Adjusted based on material properties and actual silo conditions |
|
Suction Pipe Inner Diameter (mm) |
150 |
|
|
Dust Filtration Method |
Gravity Inertial Dust Removal + Bag Filtration |
|
|
Bag Cleaning Method |
Reverse Blowing |
|
|
Exhaust Dust Content (mg/m³) |
20 |
|
|
Discharge System Configuration Parameters |
||
|
Air Source Equipment |
Air Compressor or External Ground Air Source |
|
|
Air Compressor |
Swing Rod Oil-free Type |
|
|
Discharge Method |
1. Pressure Discharge |
|
|
Max. Working Pressure (MPa) |
0.2 |
Ground air source flow ≥ 15 m³/min |
|
Pressure Discharge Speed (t/h) |
30–80 (Without external air source, discharge height up to 23 m, reference material: cement) |
Adjusted based on material properties and actual silo conditions |
|
Discharge Pipe Inner Diameter (mm) |
100 |
|
|
Rear Cover Opening Method |
Manual Side-opening |
|
|
Max. Rear Cover Opening Angle |
70° |
|
|
Rear Cover Locking Method |
Bolt Locking |
|
|
Residual Material Rate in Tank |
2% |
|
|
Hydraulic Lifting System Configuration Parameters |
||
|
System Pressure (MPa) |
16 |
|
|
Hydraulic Tank Volume (L) |
~80 |
|
|
Lifting Cylinder |
Jiaheng/Haiwo |
|
|
Valve specifications |
|
|
Suction Valve |
Valve DN200, Interface DN150 |
|
Discharge Valve |
Valve DN125, Interface DN100 |
|
Other Valves |
DN50–DN200 |
|
Wear-resistant Components |
Special-process bent/straight pipes from professional manufacturers (installed at suction/discharge pipe elbows) |
