ITEM

PARAMETER

UNIT

DATA

Whole Vehicle

Vehicle Model

SA5322TQZS5

Overall Dimensions

mm

9730X2550X3250

Curb Weight

kg

21270approximate

Rear arm lifting Weight

20000approximate

Rear arm traction weight

45000approximate

Front/Rear Hanging

mm

1525/2000

Approach/Departure Angle

 °

16/11

Leaf Spring

pcs

10/12

Drive Wheel

6*4

Chassis Model

SX5258ZYSMR

Manufacturer

Shaanxi Automobile Group Co., Ltd

Wheel Base

mm

4375+1400

Tire Specification

inch

12R22.5

No. of Tires

pcs

10+1 spare

Engine

Engine Type

ISL 325 50  (Euro V)

Manufacturer

     Dongfeng CUMMINS  Engine Co., Ltd

Engine Horsepower

hp

325

Displacement

ml

8880

Emission Standard

Euro V

Gearbox

No. of Gears

Manual 10-speed with overdrive

Cab

Passengers

2

Steering wheel

LHD

ROW

Single Row and a sleeper

Other

Air conditioning, directional assistance, Oil brake,warning lights

Special Function

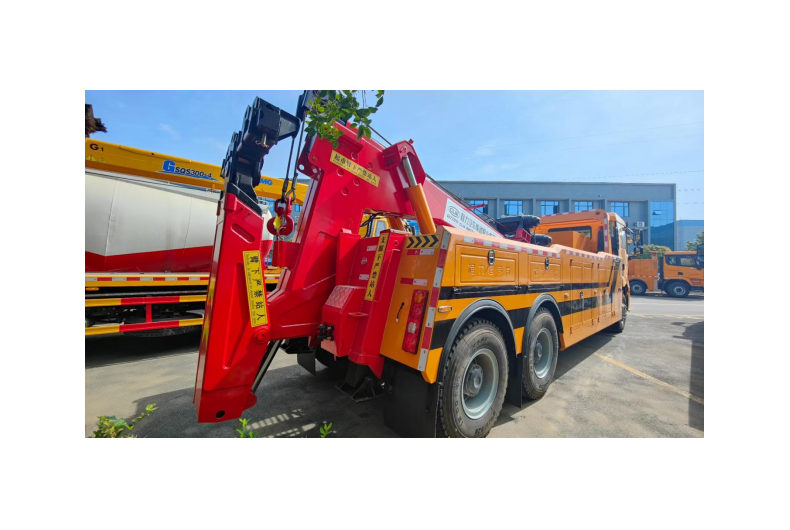

20T upper installation,combined type upper installation, imported valve, two section hexagonal crane arm, three section support arm, split type carriage, double-sided linkage operation device, two ten ton hydraulic winches, 45 meter steel wire rope, diameter 18MM, equipped with four sets of steel forks, one set of towing fork sleeve, one set of steel plate lifting ear towing fork, and one set of tire holding device A long row of engineering warning lights One set of auxiliary lights, one set of auxiliary air duct assembly, and two binding chains
